14. Architecture Reference

This section provides a deep dive into REDAC architecture, suitable for developers and experienced users who want to dig into the connectivity provided by the device. You should read the introductory section on REDAC architecture first.

14.1. REDAC Hierarchy

REDAC stands for Reconfigurable Discrete Analog Computer. This means it is constructed using discrete components, which are individual integrated circuits (ICs). These ICs house, for instance, multiple operational amplifiers (Opamps), serving as the fundamental building blocks for the electronic analog computing paradigm employed by REDAC.

The system is designed with a highly modular, hierarchical, and repetitive architecture. At each hierarchical level, components from the lower levels are arranged in a consistent, repetitive structure while remaining individually replaceable. This design achieves a balance between high regularity for efficient organization and substantial flexibility for customization. This modularity not only simplifies maintenance and scalability but also enables tailored configurations to suit specific computational needs. The following figure Fig. 14.1 provides an overview picture emphasizing on the hierarchical and modular nature of REDAC.

schema drawing — Fig. 14.1 Abstract hierarchy diagram of REDAC.

The figure introduces a lot of concepts which are presented in detail in the following sections. Despite REDAC is an analog-digital hybrid computer, the architectural description will primarily explain the analog connectivity, apart from the description of digital circuits.

14.1.1. Single cluster

A cluster is the atom of the REDAC computer. The circuits at this level are alsor refered to as macro cell in the literature. A cluster provides all-to-all connectivity between up to 16 computing elements. Coupling is implemented by switching matrices under control of the attached digital computer, basically resembling a crossbar switch.

Schematically, Figure Fig. 14.2 provides a way to visualize the interconnection matrix with real numbers representing coupling strengths. The cluster system matrix is the adjacency matrix for the interconnection graph between the computing elements. The entries are referred to as weights. As a special property, the system matrix does implicit summing which can be thought of as matrix multiplication linear algebra operations: \(C_i^\text{in} = \sum_{j=0}^{16} M_{ij} C_j^\text{out}, \quad i,j \in [0,16]\) where \(C_i^\text{in}\) is the input to the \(i\)-th computing element, \(C_i^\text{out}\) is its output, and the \(M_{ij}\) are the weights. The previous equation describes monadic computing elements with one input and one output. The integrator is the only monadic computing element in a cluster system. It computes the time integral over its time-varying input signal. REDAC also provides another kind of computing elements, which are dyadic, i.e. feature two inputs and one output: Multipliers. The multipliers implemented allow for full four-quadrant-multiplication, i.e. each of the input values can take on values within the whole machine unit interval \([-1,1]\).

Figure Fig. 14.3 shows a more detailed block diagram of the REDAC. It shows the closed loop analog compute path. The labeled shapes in the diagram each represent a particular blocks (in bold letters, referred to as “entities” in the REDAC terminology) and auxiliary elements (in normal letters). The figure does not show any digital control/configuration signal paths. Most notably, the U-, C- and I-blocks together form the UCI matrix, which corresponds to the simplified interconnection matrix shown before in Figure Fig. 14.2. In contrast, Figure Fig. 14.3 emphasizes the internal fanout and fanin properties of the U- and I-blocks, resulting in a turbine-like appearance of this circuit representation.

The UCI matrix has 16 inputs, 16 outputs and 32 internal signal paths, each of which contains a coefficient element. These 32 paths are also called lanes and correspond to up to 32 nonzero entries in the system matrix, yielding a maximum matrix density of \(32 / 16^2 = 12.5\). This corresponds to a minimum sparsity of 87.5%.

14.1.2. mREDAC level

mREDAC stands for minimal or motherboard REDAC and is the smallest autonomous part of the system. It contains one microcontroller (MCU) which has an Ethernet uplink and steers all digital signals on the motherboard. The board hosts three clusters which share a single OP/IC line. The three clusters are interconnected by means of one T block. This minimal self-standing analog hybrid computer is completed with analog aquisition circuitery (eight ADC channels) as well as digital/analog external I/O. This way, an mREDAC is basically the smallest standalone unit of REDAC.

14.1.3. iREDAC level

iREDAC stands for intermediate or interconnecting REDAC. At this level, seven mREDAC units are connected to a single backpanel. Interconnection is enabled by means of several T blocks. Furthermore, several digital busses on the back panel enable the orchestration and in particular synchronization of the mREDACs. The iREDAC comes in a modular 19” rack-mounted blade-style appearance where mREDACs can be conveniently accessed from the front for maintenance purpose.

14.1.4. REDAC level

The whole REDAC system is composed by order of magnitude 10 iREDAC units. The large number of microcontrollers are steered by a single supercontroller (in short SC). This term refers both to the hardware (a single server grade computer) and a particular networking software which serves as single end point for all analog parts of REDAC. From the hardware perspective, the REDAC further contains Ethernet/IP administration (in the simplest case one switch and one router). From the software perspective, REDAC contains a managament interface ontop of the SC which does job managament, user authorization, encryption, provides API endpoints and custom software support such as compute intensive circuit transpilation. For further information on the software architecture, please refer to the Developer Manual.

14.2. Block reference

This section provides a reference of all function blocks within REDAC. Typically, a block is realized as a DIMM form factor PCB. Furthermore, typically every block is also an entity in the concept of the REDAC hybrid controller (see firmware documentation for details).

14.2.1. Cluster blocks

All blocks within a single cluster are part of the compute path and shown in figure Fig. 14.3.

M0 and M1 blocks: M-blocks are math blocks. Each can have up to 8 analog input and 8 analog output signals. Math blocks contain various elements and allow digital configuration of these elements. In contrast to classic analog computers, there are no summers available as explicit computing elements, as summation is done implicitly in the I-block. This enhances the overall flexibility considerably. For details see Math blocks.
U block: The output signals of these M-blocks are connected to the U-block which contains a \(16\times32\) crossbar switch. Since the output signals of the M-blocks are voltages, this crossbar switch can distribute one signal to several outputs at once. It therefore serves as a 16:32 fan-out, allowing to distribute the input signals arbitrarily on 32 internal lanes within the UCI interconnection matrix.
C block: These \(32\) output signals (still represented by voltages) are then fed into the coefficient block. This contains \(32\) digitally controlled coefficient potentiometers with \(11\) bits resolution and an additional sign bit. Thus, the C-Block implements one coefficient per lane by means of a multiplying DAC (a certain type of digital analog converter). These coefficients allow scaling of values with factors in the interval \([-1,1]\). The output of these coefficients are now currents instead of voltages and feed the I-block.
I block: Following the C-block is the I-block. It, too, is a crossbar switch, this time with \(32\) inputs and \(16\) outputs. Working with currents, it is now possible to implicitly sum several inputs, thus eliminating the need for explicit summers as computing elements. The \(16\) output lines of the I-block are connected to the inputs of the computing elements contained on the M-blocks. The I-block also features a programmable gain of either factor 1 or 10, allowing for a broader dynamical range of the machine.
SH block: This block contains 16 sample and hold elements to correct offset errors of the computing elements. It is transparent for the analog signal path and only serves for signal conditioning. It is part of the sophisticated error correction techniques of the LUCIDAC.

14.2.2. mREDAC and iREDAC level blocks

CTRL block

This block contains the hybrid controller based on the MCU. It is responsible for setting up the computing elements, coefficient potentiometers, crossbar switches. It also takes care of the communication with the digital upstream computer (the client in a networking setting or host in a USB setting). The control block physically holds the MCU as well as eight analog to digital converters.

T block

This block is used for interconnecting clusters. The T stands for tee piece but also topology or transparent. One jokes that it also stands for Tricky or T-Rex, given its highly regular yet unintiuitive way of interconnecting a large number of analog signals. The T block is not part of a single cluster. Each mREDAC has one T block and each iREDAC backplane has three T blocks.

Technically, a T-block provides 96 voltage coupled analog I/O that go to 24 analog switches. Each switch is a 1-to-3 fanout or 3-to-1 fanin, depending on the information flow in the usage mode.

14.2.3. Math blocks

Despite the implicit summing in the networking topology, all linear and nonlinear analog computation is performed on the Math blocks (M-blocks). REDAC math blocks are modular and can be exchanged, despite this requires opening the device.

A single cluster has slots for two math blocks. As of now there are two types of M-blocks available:

Integrator Math block MInt: contains eight integrators (each with one input with implicit summing, one output). Integrators have an internal analog state (the current integration value), a digital state (IC / OP / HALT state machine), and a hybrid state (initial conditions and time scaling factor \(k_0\)).
Multiplier Math block MMul: contains four multipliers (each with two implicit summing inputs, one output). The four remaining outputs of this block are used as identity elements. They can be used for more flexibility in the connection topology.

In normal conditions, one cluster contains eight integrators and four multipliers.

14.3. Digital Network

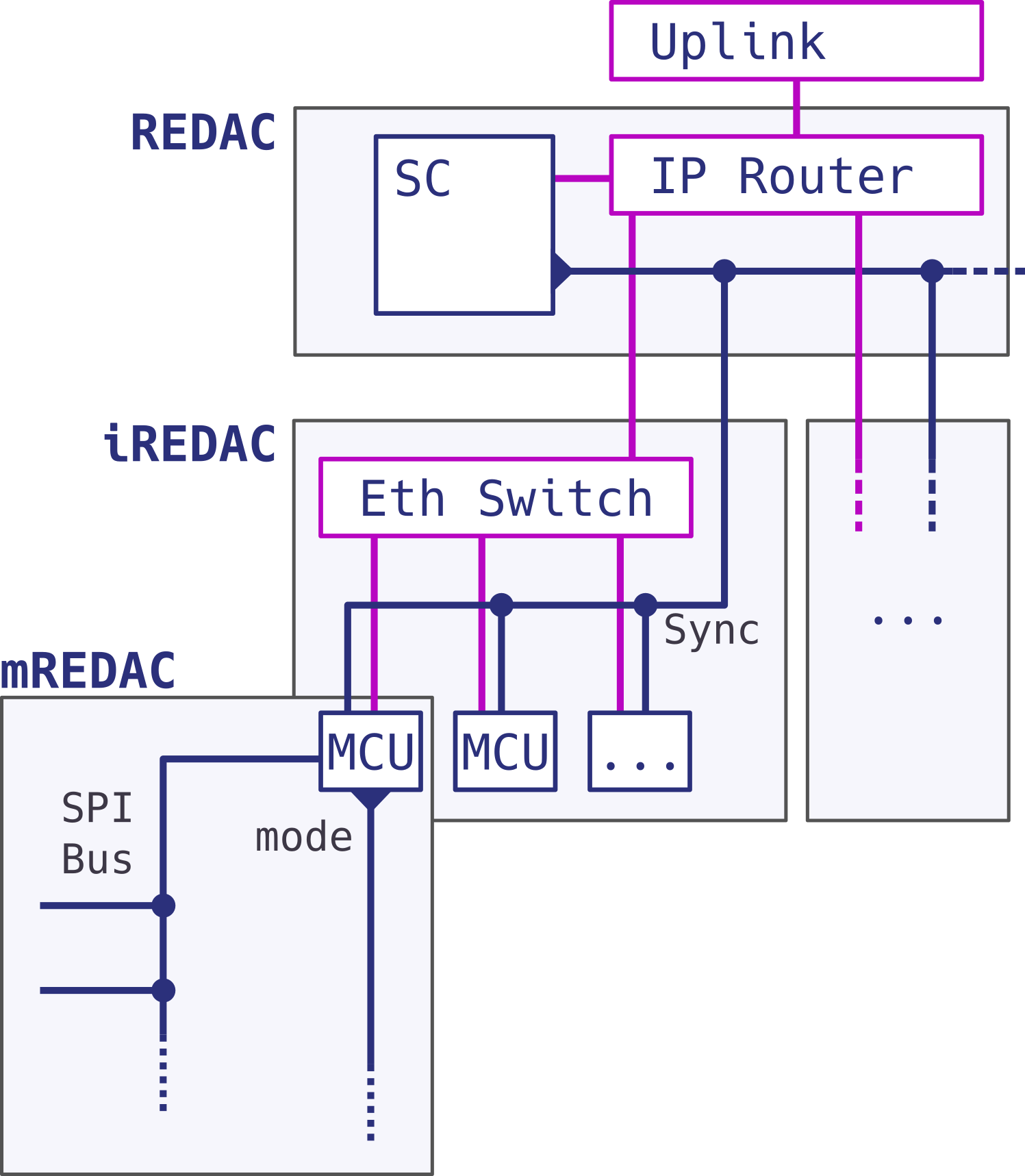

The REDAC digital network is actually made out of several networks:

The multi-purpose digital bus within a single mREDAC. It has roughly 11 address lines and roughly 5 data lines which are primarily used for SPI communication. This bus is extended to the iREDAC backplanes.
The REDAC-internal network used for communication between MCUs and SuperController (never used to communicate directly between MCUs).
Global (serial) mode lines steered by a single MCU which is currently USB-connected to the SuperController.
